Insulated Ball Bearing Swivel SKI
Extra Information:

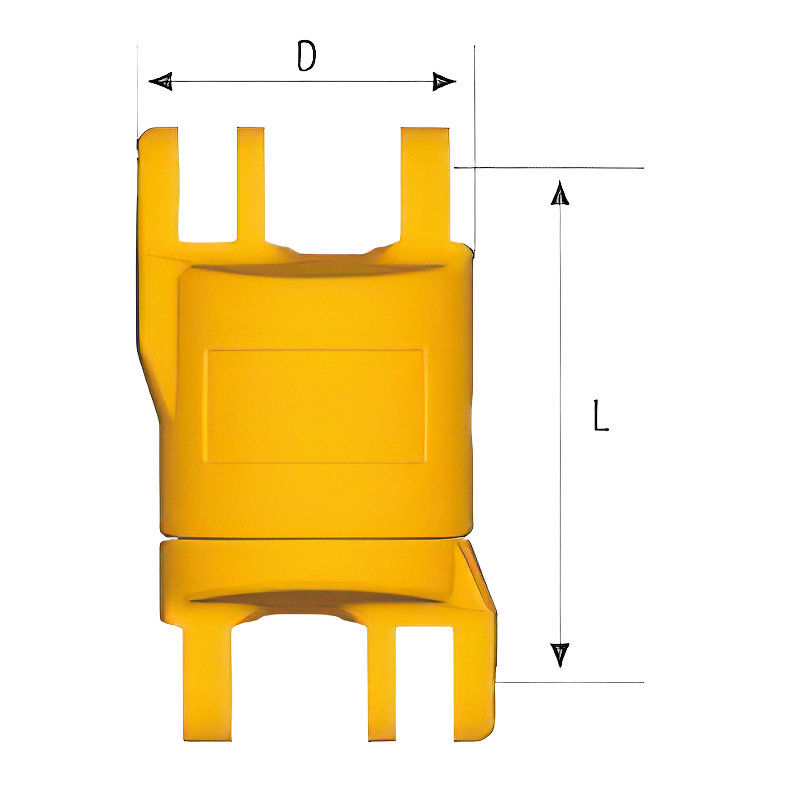

Roller-bearing Swivel SKLI/SKLU Classic
- Grade 8
- Electrically insulated, lubricated, sealed roller bearing swivel. Fully rotational even at maximum load. Tested to resist 1000 V. Suitable for protection of overhead cranes during welding operations on suspended loads.
- * uninsulated
- Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M, AS 3776:2015 and SANS 1595:2003
- Safety factor 4:1
- All dimensions in mm
Enables welding to be carried out safely to a work place suspended from an electric hoist or crane by eliminating current leakage to earth. Max. 1000 v.
Ball Bearing Swivel type SKL
Totally enclosed ball bearing swivel, Fully rotational even at maximum load. Especially suitable for underwater use.
| Part no | Code | WLL t | For chain size | L | D | Weight kgs |
|---|---|---|---|---|---|---|
| Z100316 | SKLI-7/8-8 | 2.0 | 7, 8 | 75 | 48 | 0.733 |
| Z100414 | SKLI-10-8 | 3.2 | 10 | 97 | 59 | 1.397 |
| Z100415 | SKLI-13-8 | 5.4 | 13 | 120 | 75 | 2.82 |
| Z100416 | SKLI-16-8 | 8.0 | 16 | 137 | 90 | 4.72 |
| Z100417 | SKLI-18/20-8 | 12.8 | 19 | 159 | 104 | 7.11 |
| RS16520 | SKLU-22-8* | 15.5 | 22 | 160 | 109 | 9.582 |
| RS16530 | SKLU-26-8* | 21.7 | 26 | 207 | 135 | 17.813 |
