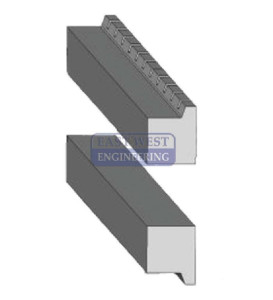

Fork Carriage Bar FCB
Extra Information:
The FCB Fork Carriage Bar is designed and precision machined in accordance with Australian Standard AS2359.11.
Key Features:
- Supplied in pairs, consisting of one lower bar and one upper bar
- Ready for welding into standard forklift carriages
- Precision machined for accurate fitment
- ISO / FEM compliant
SPECIFICATIONS
| Model | Length (mm) | Depth (mm) | Height (mm) | Weight/ pair (mm) | Supplied |
|---|---|---|---|---|---|
| FCB3-120-P | 1200 | 50 | 70 | 58 | Upper & lower bar |
| FCB4-120-P | 1200 | 50 | 150 | 141 | Upper & lower bar |
| FCB4-160-P | 1600 | 50 | 150 | 188 | Upper & lower bar |
| FCB4-240-P | 2400 | 50 | 150 | 282 | Upper & lower bar |
Fork arms not included. Upper and lower carriage bar have the same profile. Cut out notches in upper bar only to suit fork tine locking.
