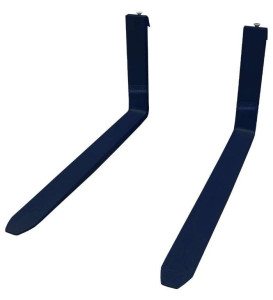

Fork Arms FA
Extra Information:
The FA Fork Arms are designed and manufactured to Australian Standard AS2359.1 for reliable and safe performance.
Key Features:
- Manufactured from high tensile steel
- Lightweight design with slow wear characteristics for a long, dependable service life
- Fitted with standard ITA hooks
- Rotator Fork Arms (R) are specifically manufactured to suit carriage rotators and include an additional full load bearing block (3rd hook), allowing the full rated load to be carried even when fully inverted
- Random testing performed in accordance with AS2359.1, clause 6.5
- Custom sizes available on request
SPECIFICATIONS
| Model | Mounting Class | Width (mm) | Thickness (mm) | Length (mm) | Unit Weight (kg) | Material |
|---|---|---|---|---|---|---|
| FA15-107 | Class 2 ? 407mm | 100 | 35 | 1070 | 82 | High tensile steel |
| FA25-107 | Class 2 ? 407mm | 120 | 40 | 1070 | 112 | High tensile steel |
| FA25-120 | Class 2 ? 407mm | 120 | 40 | 1200 | 123 | High tensile steel |
| FA25-120R | Class 2 ? 407mm | 120 | 40 | 1200 | 123 | High tensile steel |
| FA35-107 | Class 3 ? 508mm | 125 | 50 | 1070 | 152 | High tensile steel |
| FA35-120 | Class 3 ? 508mm | 125 | 50 | 1200 | 166 | High tensile steel |
| FA35-120R | Class 3 ? 508mm | 125 | 50 | 1200 | 166 | High tensile steel |
| FA45-107 | Class 3 ? 508mm | 150 | 50 | 1070 | 179 | High tensile steel |
| FA45-120 | Class 3 ? 508mm | 150 | 50 | 1200 | 197 | High tensile steel |
| FA45-120R | Class 3 ? 508mm | 150 | 50 | 1200 | 197 | High tensile steel |
| FA60-120 | Class 4 - 635mm | 150 | 60 | 1200 | 260 | High tensile steel |
| FA60-120R | Class 4 - 635mm | 150 | 60 | 1200 | 260 | High tensile steel |
| FA70-120R | Class 4 - 635mm | 150 | 60 | 1200 | 260 | High tensile steel |
* Fork Arms are supplied in a range of capacities and lengths.
** Always ensure that the rating of the Fork Arm is equal to or exceeds the rated lift capacity of the fork truck.
** Always ensure that the rating of the Fork Arm is equal to or exceeds the rated lift capacity of the fork truck.
When fitting fork arms ensure that the marking on the fork arms is compatible with the forklift rating. Each fork arm is stamped on the side with the relevant information. The rating is for an individual fork arm and should be doubled to provide a total safe working load. The fitting of fork arms with a lower rating than the forklift truck could lead to failure, resulting in injury or death.
