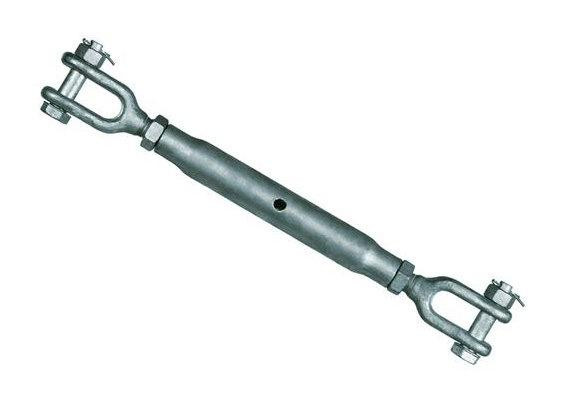

Rigging Screw Grade L Jaw/Jaw - AUSTLIFT
Extra Information:
- Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.
- Manufactured from Grade L high tensile material quenched and tempered hot dipped galvanised finish suitable for outdoor use available in metric sizing and jaw end fittings with lock nuts.
- Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum break force is 6 x WLL.
- Suitable for industrial lifting purposes.
- Individual proof tested.
SPECIFICATIONS
| SIZE | CODE | WLL (T) |
Wt. (kg) |
DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| (mm) | A | C | D | N | O | ||||
| 10 | 407010L | Grade L | 0.5 | 0.48 | 152 | 124 | 21 | 235 | 345 |
| 12 | 407012L | Grade L | 0.5 | 0.98 | 229 | 183 | 25 | 350 | 525 |
| 16 | 407016L | Grade L | 0.75 | 1.4 | 229 | 194 | 27 | 390 | 530 |
| 20 | 407020L | Grade L | 1.2 | 2.3 | 229 | 204 | 34 | 405 | 540 |
| 24 | 407024L | Grade L | 2.5 | 4.85 | 356 | 292 | 42 | 565 | 820 |
| 27 | 407027L | Grade L | 3 | 5.75 | 256 | 294 | 45 | 590 | 805 |
| 33 | 407033L | Grade L | 5 | 8.08 | 381 | 320 | 57 | 640 | 870 |
| 39 | 407039L | Grade L | 6 | 13.5 | 407 | 356 | 63.5 | 700 | 960 |
| 45 | 407045L | Grade L | 7 | 18.6 | 407 | 378 | 70 | 755 | 975 |
| 48 | 407048L | Grade L | 10 | 23 | 407 | 404 | 76 | 790 | 975 |
