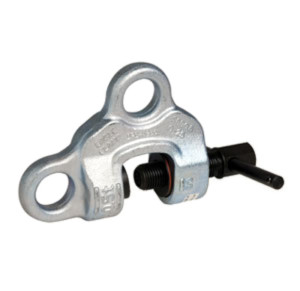

KITO PWB Multi Directional Lifting Clamp MODEL SBBA
:
Capacity 0.5 – 3 TONNE
- indicates when tightening force is achieved).
- Suitable for most bisalloy steel (up to Hv600).
- Spring type pressure locking device.
- Twin Shackle allows movement in any direction.
- Double safety feature with screw type vice and automatic clamping mechanism.
- Clamp screw, edge pad and swivel jaw made of induction hardened, alloy steel.
- For steel plates with higher hardness range.
- Tightening force on SBBA must be a minimum of 300kgf-cm.
- Manufactured in Japan
Australian Standard: AS 4991
Applications:
Lifting
Moving of steel plates.
SBBA-05 SBBA-1 SBBA-2 SBBA-3
Specifications
| Part No. | Model | WLL (tonnes) | Hardness Range | Effective Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 44932 | SBBA-05 | 0.5 | Hv 85-600 | 1-25 | 1.8 |
| 49600 | SBBA-1 | 1.0 | Hv 85-600 | 1-40 | 4.0 |
| 49601 | SBBA-2 | 2.0 | Hv 85-600 | 1-40 | 7.6 |
| 49602 | SBBA-3 | 3.0 | Hv 85-600 | 5-35 | 8.3 |
| Model | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | O (mm) | P (mm) | Q (mm) | R (mm) | S (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBBA-05 | 23 | 25 | 27 | 22 | 41 | 29 | 140 | 223 | 15 | 24 | 96 | 20 | 46 | 26 | 150 | 15 | 24 | 27 |
| SBBA-1 | 30 | 45 | 32 | 31 | 61 | 46 | 203 | 166 | 18 | 34 | 124 | 24 | 55 | 36 | 150 | 22 | 34 | 32 |
| SBBA-2 | 37 | 43 | 36 | 43 | 66 | 45 | 210 | 183 | 25 | 38 | 134 | 32 | 70 | 44 | 150 | 25 | 36 | 32 |
| SBBA-3 | 40 | 47 | 45 | 40 | 60 | 60 | 240 | 170 | 30 | 42 | 137 | 36 | 80 | 50 | 150 | 30 | 30 | 31 |
