G80 Bolt-On Point
:
- High tensile forged alloy steel quenched and tempered, conforms to AS3776 and EN1677.
- Manufactured from treated alloy steel with safety factor of 4:1
- Test certificate available upon request.
- Marked with working load limit, product ID, grade with manufacture ID.
G80 Bolt-On Point
| Code | WLL(T) | WEIGHT (kg) | DIMENSIONS (mm) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| H | G | K | Ø | Ø1 | D | L | |||

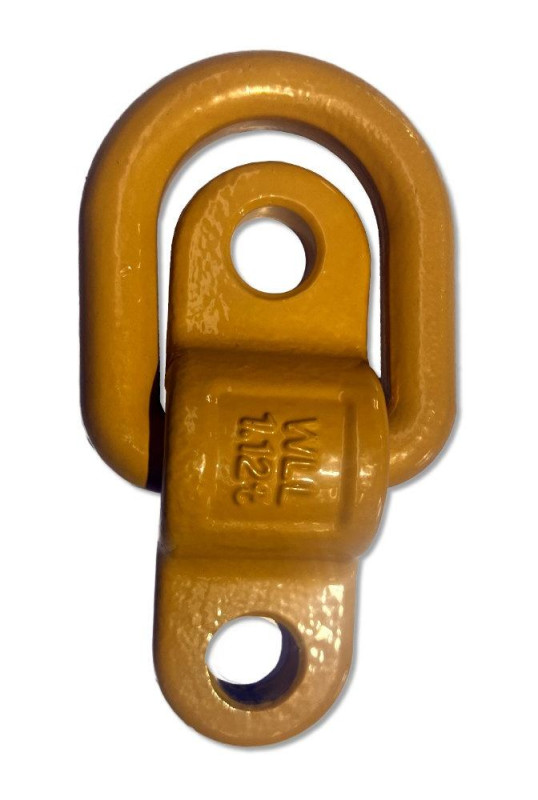

| G80BOP1T | 1.12 | 0.58 | 10 | 27 | 36 | 15 | 13 | 38.5 | 104 |

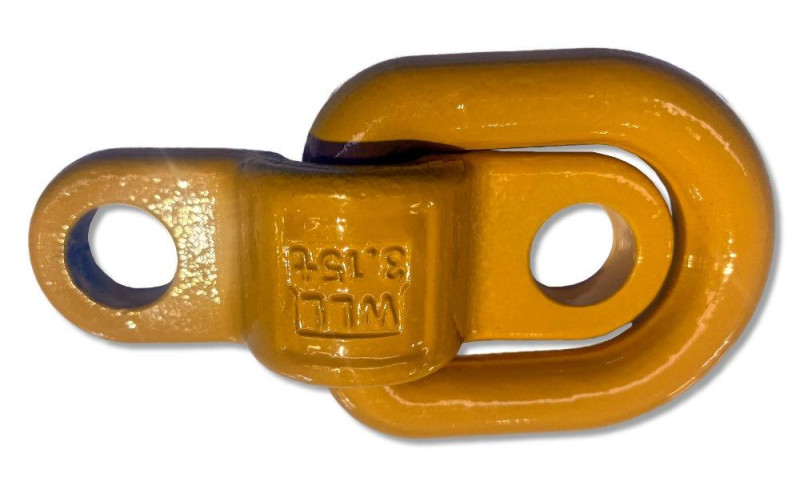

| G80BOP2T | 3.15 | 1.02 | 12 | 34 | 40 | 21 | 17 | 43 | 130 |

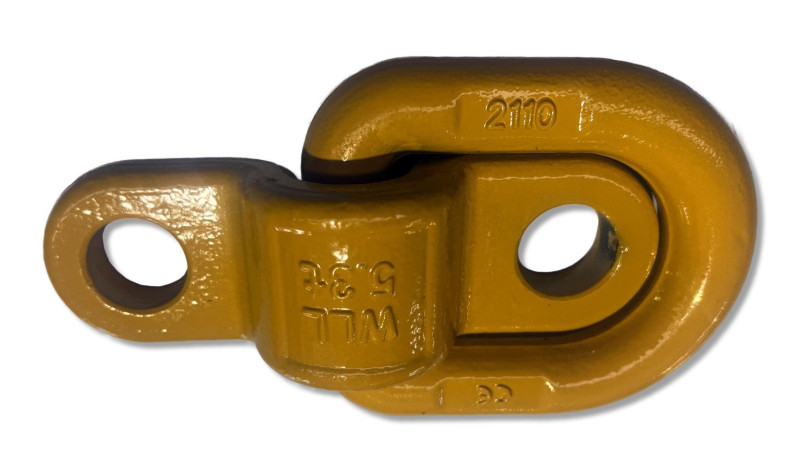

| G80BOP3T | 5.3 | 2 | 15 | 42 | 50 | 25 | 22 | 51 | 160 |
