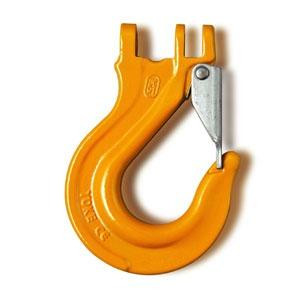

Gr8 Coupling Hook and Latch
Gr8 Coupling Hook & Latch
- Test certificate supplied.
- Gr8 Connector Pin & Sleeve sold seperatly.
- Applications: Chain, wire ripe and synthetic slings.
- Australian Standard: AS 3776.
| Chain Size (mm) | WLL (tonnes) |
K (mm) | P (mm) | T (mm) | H (mm) | Mass (kg) | Part No | Markings |
| 7.1/8.0 | 2.0 | 93 | 30 | 19 | 23 | 0.4 | 42367 | EB - 7 + 8 - 8 |
| 10.0 | 3.2 | 115 | 36 | 23 | 31 | 0.9 | 42368 | EB - 10 - 8 |
| 13.0 | 5.3 | 141 | 42 | 28 | 36 | 1.8 | 42369 | EB - 13 - 8 |
| 16.0 | 8.0 | 166 | 47 | 32 | 45 | 3.0 | 42370 | EB - 16 -8 |
| 20.0 | 12.5 | 191 | 52 | 43 | 48 | 4.7 | 42371 | EB - 18/20 - 8 |
™Herc-Alloy, Hammerlok, Couplok, Max A Lok, Latchlok & Pinlok are trademarks of PWB Anchor Limited.
YOKE is a registered trademark of YOKE Industrial Corp used by PWB Anchor Limited with the permission of YOKE Industrial.
Dimensions & Masses subject to commercial tolerances & design changes without notice.
