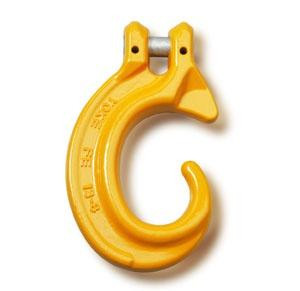

Gr8 Clevis C Hook
Gr8 Clevis 'C' Hook
- A general purpose hook that can be mechanically coupled for easy assembly and use.
- Test certificates supplied.
- Hooks without a latch are generally used for specific applications, ie. not for lifting use.
- Where there is a risk of the hooks becoming detached during use, a risk assesment shall be conducted in accordance with Section 11 of AS 3776.
- Applications: Logging
- Australian Standard: AS 3776
| Chain Size (mm) | WLL (tonnes) | A (mm) | K (mm) | P (mm) | T (mm) | H(mm) | Mass (kg) | Part No | Markings |
| 7.1/8.0 | 2.0 | 9 | 80 | 19 | 18 | 22 | 0.5 | 40395 | FE 7+8 -8 |
| 10.0 | 3.2 | 11 | 105 | 26 | 24 | 26 | 0.9 | 40396 | FE 10-8 |
| 13.0 | 5.3 | 14 | 138 | 34 | 32 | 34 | 2.1 | 40397 | FE 13-8 |
| 16.0 | 8.0 | 18 | 170 | 38 | 37 | 45 | 3.6 | 40398 | FE 16-8 |
