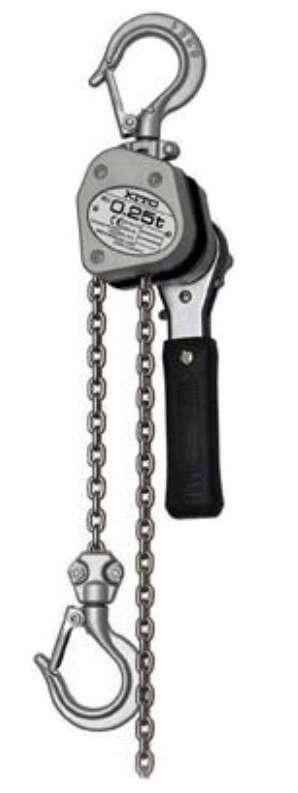

KITO LX Series Lever Hoist
:
Capacity 250 – 500kg
- Compact and Light.
- Easy to carry and easy to use, even in tight quarters or in elevated work locations.
- Fasteners are designed to protect threads from damage making maintenance easier.
- Nickel plated chain.
- The hook latch is highly resistant to deformation and damage.
- Single-step reduction gear, requires manual fastening force and assured load holding. Reliable load fastening can be provided to the last click of the lever.

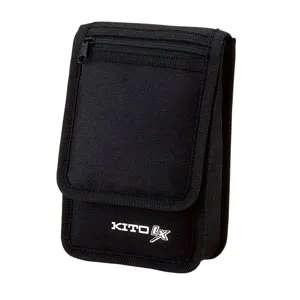

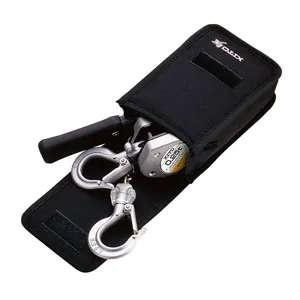

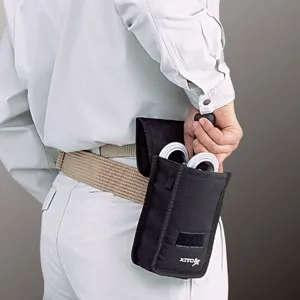

- LX003 comes complete with belt bag.
- Complementing the Lever Hoist range are the lightweight LX003 and LX005 models.
- Compact and portable these 250kg and 500kg capacity units are an ideal lever hoist for lifting, lowering or positioning of loads and can be carried or stored in your toolbox.
- Optional lift heights also available.
Flyer
LX Series Lever Hoist
| Capacity | Part No. | Lift Height (metres) | Headroom (mm) | Lever Length (mm) | Load Chain Dia (mm) x fall | Weight* (kg) | Load Chain Dia x Pitch (mm) | Part No. |
|---|---|---|---|---|---|---|---|---|
| 250kg | 44200 | 1.0 | 205 | 150 | 3.2 x 1 | 1.6 | 3.2 x 9 | 44835 |
| 500kg | 44201 | 1.2 | 246 | 180 | 4.3 x 1 | 2.6 | 4.3 x 12.0 | 44836 |
Australian Standard: AS 1418.2
Applications:
- Mining
- Engineering
- Construction.
