Endo EWF Series Spring Balancer

:

Capacity:  4.5 – 105KG

Features:

  • Strong, lightweight aluminium body.
  • Heavy-duty top and bottom hook.
  • Easy maintenance with interchangeable kit parts.
  • Tapered drum for exact torque retraction across the full stroke.
  • ‘Anti Snap Back’ models available.
  • Gauge for determining load.
  • Cartridge spring assembly.
  • Fall arrest and drum lock device.
  • Worm gear spring adjustment.

Applications:

  • Suitable industries: Engineering, manufacturing, abattoirs, process lines and job shops.
  • Applications: Suspension of electric or pneumatic power tools, or for hanging tools, parts or welding equipment at workstations or assembly lines.




SPECIFICATIONS

Capacity
Min (kg)
Capacity
Max (kg)
Part No. Model Stroke
(m)
Weight
(kg)

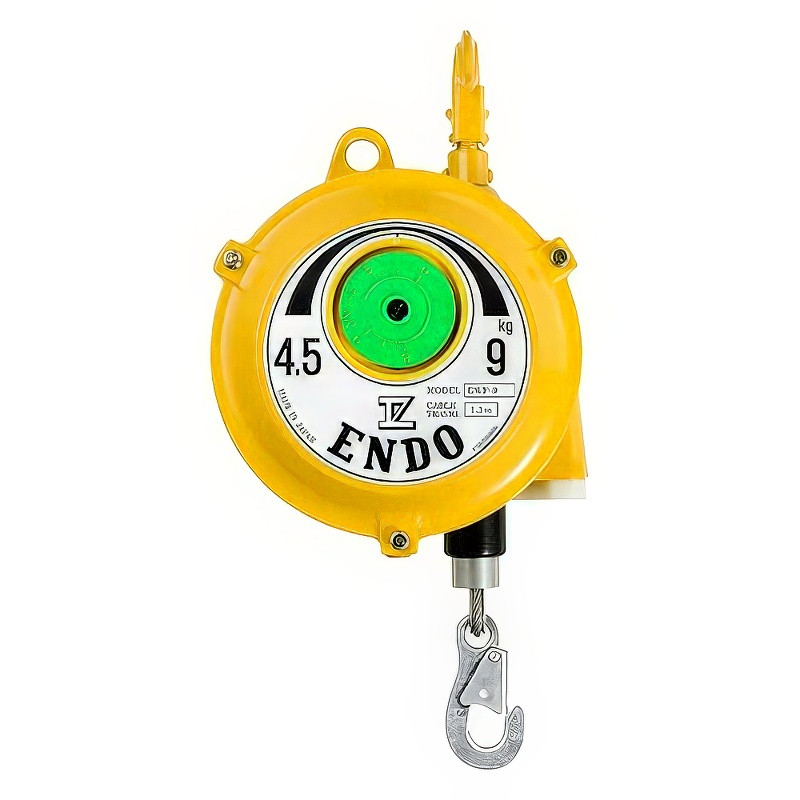

4.5 9.0 44263 EWF9 1.3 3.5
9 15 44264 EWF15 1.3 3.8

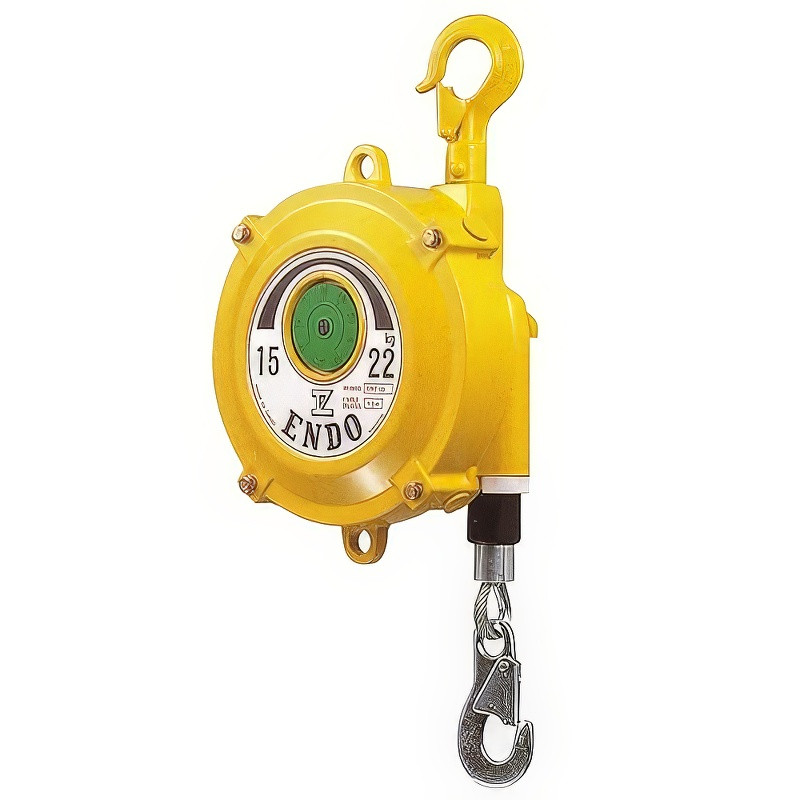

15 22 44265 EWF22 1.5 7
22 30 44266 EWF30 1.5 7.6

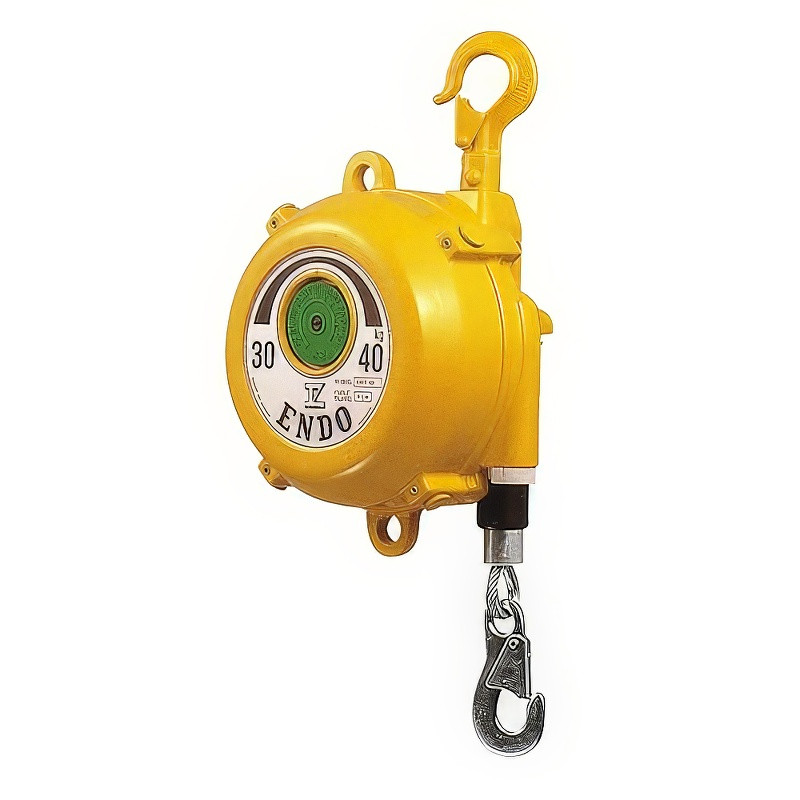

30 40 44267 EWF40 1.5 9.8
40 50 44268 EWF50 1.5 10.2
50 60 44269 EWF60 1.5 11.6
60 70 44270 EWF70 1.5 11.9

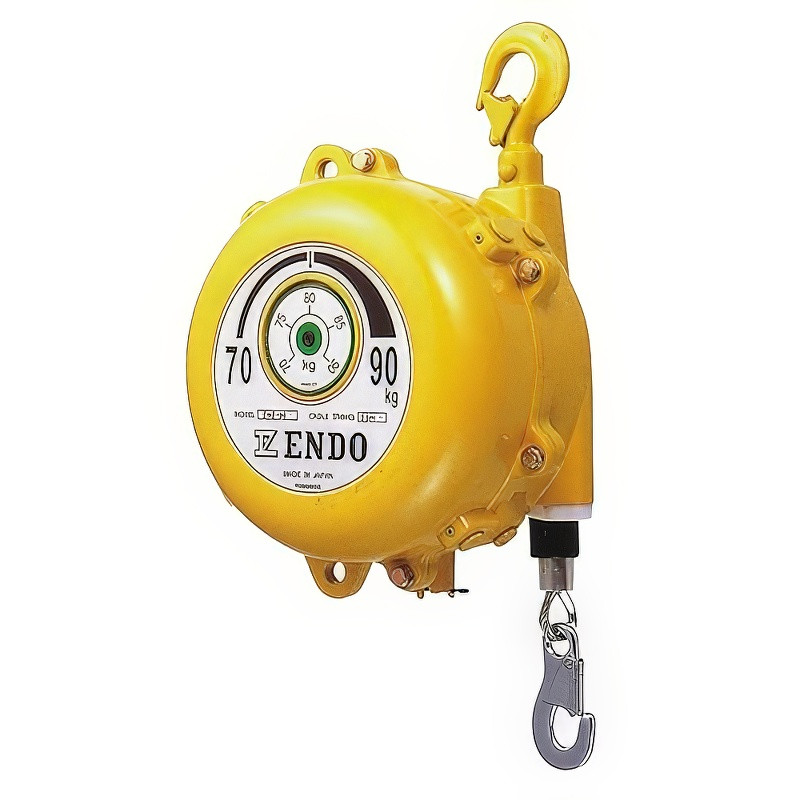

70 90 44451 EWF90 2.0 21.9
85 105 44452 EWF105 2.0 24.0



DOWNLOAD DATASHEET
