Light Duty Sheave Block - Hook Type, Hand Operated

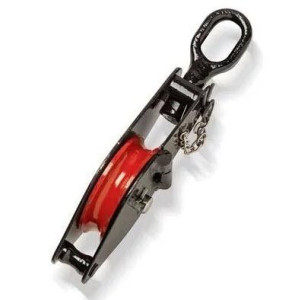

KITO PWB Manual Sheave Blocks

Extra Information:

PDF BROCHURE


KITO PWB Manual Sheave BlocksSNATCH BLOCK

Features:

  • Fully interchangeable sheaves
  • Supplied with either drop forged swivel hooks or eyes
  • Beckets are standard on all single and double blocks.
  • Bronze bushes and safety latches are also standard across the range.

Applications:

  • Block and tackle, general pulling

Australian Standard: AS 2089

Sheave  dia (mm) 63 75 100 125 150 200
Capacity 250kg 250kg 500kg 1t 1t 2t
Manilla Rope dia (mm) 10 12 16 20 24 32
Hook Suspended – Part No 45622 45639 45672 45706 45723 45757
Eye Suspended – Part No 45614 45631 45664 45698 45715 45749
Wire Rope dia. (mm) 5 6 8 10 12 16
Hook Suspended – Part No 45623 45640 45673 45707 45724 45758
Eye Suspended – Part No 45615 45632 45665 45699 45716 45750

SHEAVE & TRAVEL BLOCKS

Single

Single Sheave Block
 Sheave dia (mm) 63 75 100 125 150 200
 Capacity 250kg 250kg 500kg 1t 1t 2t
 Manilla Rope dia (mm) 10 12 16 20 24 32
 Hook Suspended - Part No. 45621 45638 45671 45705 45722 45756
 Eye Suspended - Part No. 45613 45630 45663 45697 45714 45748
 Wire Rope dia. (mm) 5 6 8 10 12 16
 Hook Suspended - Part No. 45624 45641 45674 45708 45725 45759
 Eye Suspended - Part No. 45616 45633 45666 45700 45717 45751

Beckets are standard on all single and double blocks

Double

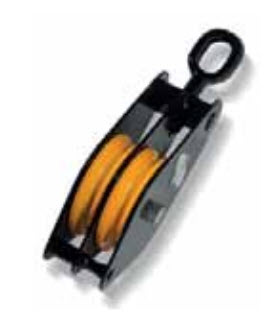

Double Sheave Block
 Sheave dia (mm) 63 75 100 125 150 200
 Capacity 250kg 250kg 750kg 1t 1t 2t
 Manilla Rope dia (mm) 10 12 16 20 24 32
 Hook Suspended - Part No. 45619 45636 45669 45703 45720 -
 Eye Suspended - Part No. 45611 45628 45661 45695 45712 45746
 Wire Rope dia. (mm) 5 6 8 10 12 16
 Hook Suspended - Part No. 45620 45637 45670 45704 45721 45755
 Eye Suspended - Part No. 45612 45629 45662 45696 45713 45747

Beckets are standard on all single and double blocks

Treble

Treble Sheave Block
 Sheave dia (mm) 63 75 100 125 150 200
 Capacity 250kg 250kg 750kg 1t 1t 2t
 Manilla Rope dia (mm) 10 12 16 20 24 32
 Hook Suspended - Part No. 45625 45642 45675 45709 45726 -
 Eye Suspended - Part No. - 45634 45667 45701 45718 -
 Wire Rope dia. (mm) 5 6 8 10 12 16
 Hook Suspended - Part No. 45626 45643 45676 45710 45727 45761
 Eye Suspended - Part No. - 45635 45668 45702 45719 -

Beckets are standard on all single, double and treble blocks
