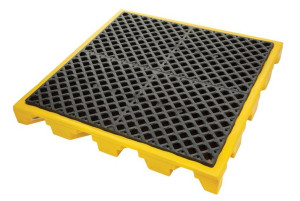

PRATT Low Profile Spill Deck 4 Drum
Extra Information:
PRODUCT CODE: 1072
- 4 Drum - low profile
- Low profile spill deck allows you to design and create a containment system that meets your specific needs
- Sump: 167
- UDL: 2722
- Height (mm): 146
- Width (mm): 1321
- Depth (mm): 1321
- Weight (kg): 32
- Storage: 4 Drums
- Optional Ramp: 1089
- Optional Ramp: 1089
PRATT FOUR-DRUM SPILL DECK WITH DRAIN - 165LTR
PRODUCT CODE: 1072
Four-drum spill deck with drain, made from 100% high strength HDPE by injection moulding. All polyethylene construction provides excellent durability and compatibility with most chemicals.
FEATURES AND BENEFITS
- Suitable for up to 4 x 205L drums.
- Interchangeable grates for deck/pallets with large openings for easily leak detection and removal of spills
- 4-way access by forklift.
- UV Stabilized.
- Nestable design to minimise space for storage and transportation.
- 19mm threaded drain plug.
- Cut out recess for lifting by hand for separating bunds when nested together.
- Working temperature range from -40o C to 60o C.
| Weight | 32 kg |
| Sump Capacity | 165 L |
| Load capacity (UDL) | 3000 kg |
| Pallet Bund Colour | Yellow HDPE |
| Grate Material | Black HDPE |
| Dimensions | 130cm x 130cm x 15cm H |
| Forklift Channels CM | Width 31.7cm, Height 6.5cm, Inside Spread 16.5cm |
Meets Regulation: : EPA 40CFR 264.175, SPCC 40CFR112.7, NPDES 40 CFR 22.26
INSTRUCTIONS
1. Recommended for daily workstation use only.
2. Ensure stored liquids are chemically compatible with polyethylene plastic.
3. Ensure any liquids in sump are removed promptly.
4. Ensure payload does not exceed maximum UDL
